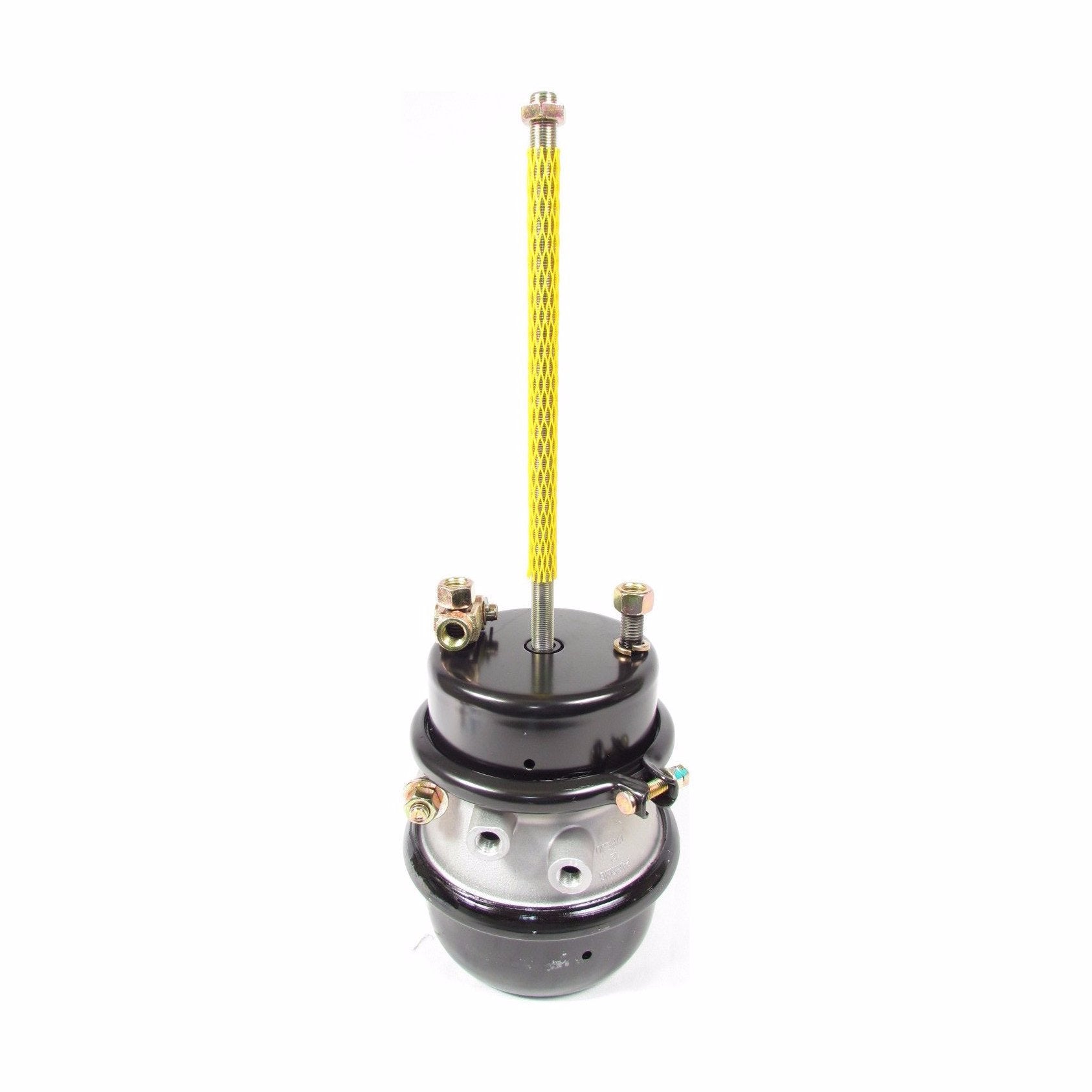

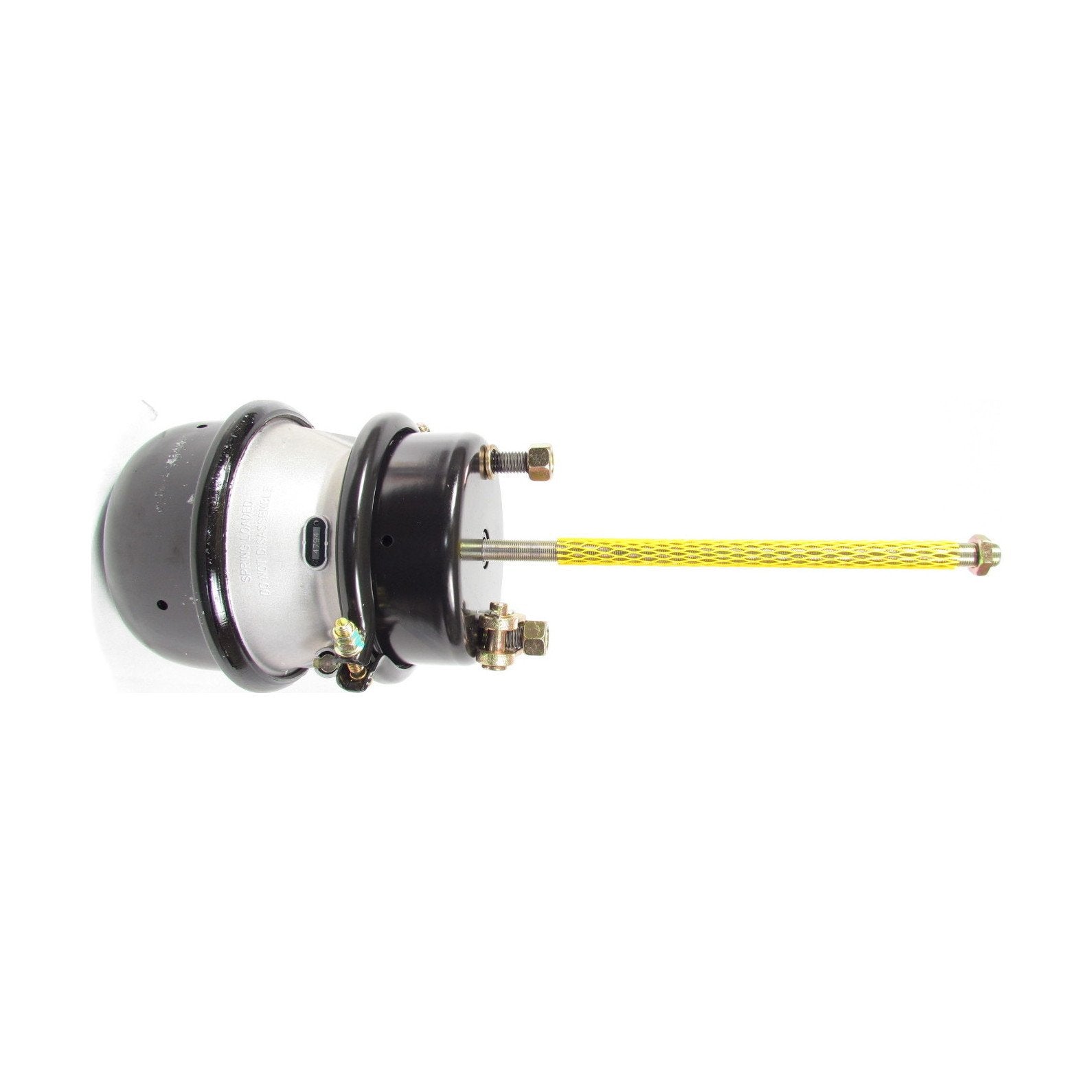

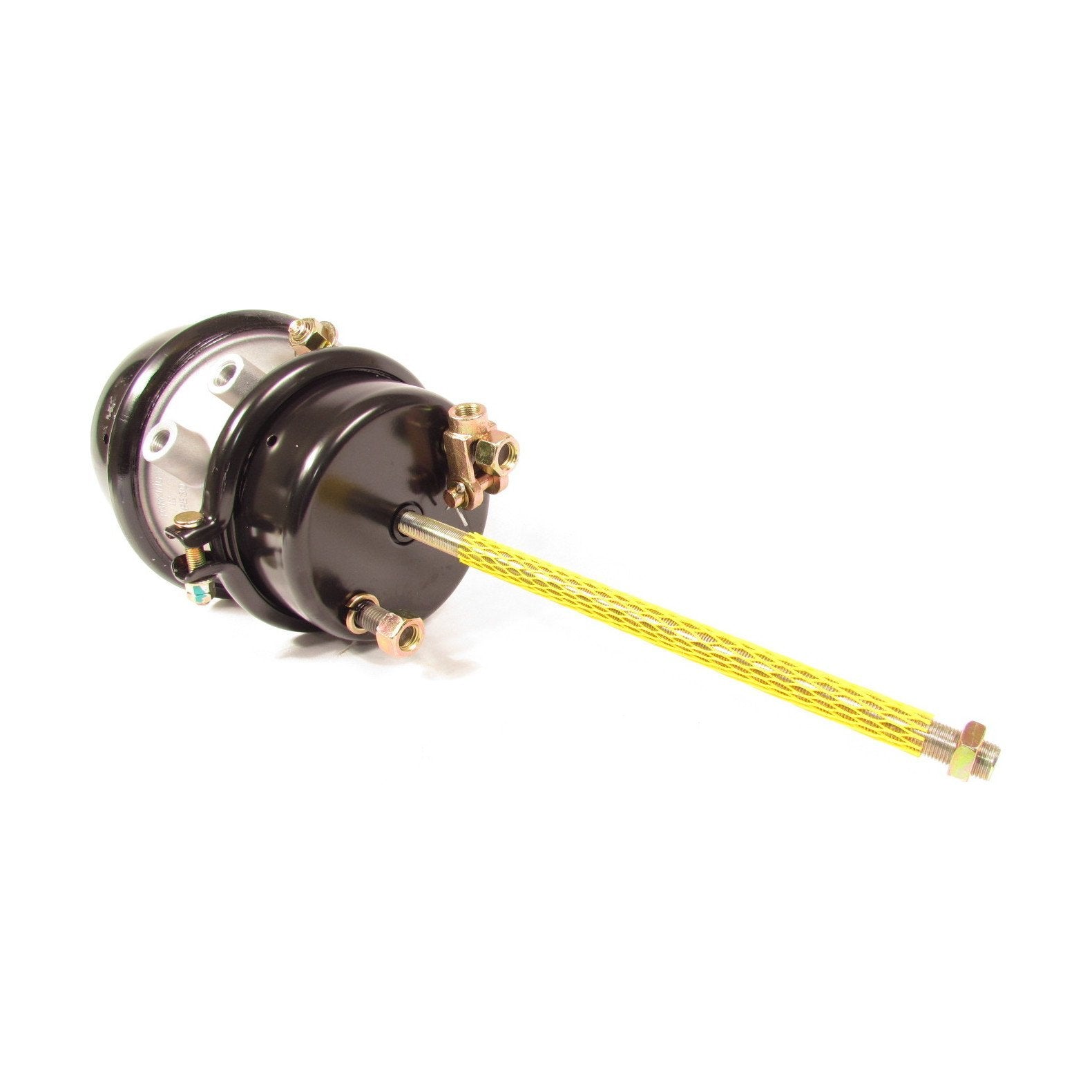

Fortpro Type 24/30 Brake Chamber - Threaded, Standard Stroke, Serviceable | F224794

Fortpro Type 24/30 Brake Chamber - Threaded, Standard Stroke, Serviceable | F224794

SKU: F224794

Availability: In Stock

Stock Level: Only 43 left in stock - Order Soon!

Shipping: Calculated at Checkout

Regular price $68.81 USD
Regular price Sale price $68.81 USD
Sale Sold out
Shipping calculated at checkout.

About this Item

  • Rugged Service Housing. 9 Gauge Steel and Powder-coated Finish for High Resistance to Fatigue and Corrosion
  • Manufactured Under ISO/TS 16949:2009 Our Brake Components Meet and Exceed International Standards.
  • Our Air Brake Components have been Passed the Following Tests: Salt Spray Test, Leak Tightness, Endurance Test
  • Standard Stroke with Length: 2 1/4"
  • Type 24/30 - Push Rod Length: 10"

Description

Check Specification & Cross-references

Specifications

  • Part: Air Brake Chamber
  • Part Type: 24/30
  • Part Series: GoldSeal
  • Air Port Position: 90°
  • Air Port Thread Diameter: 3/8-18 NPT
  • Bracket to End of Spring Housing Length: 9.3"
  • Clevis: Threaded
  • Finish: Powder Coated
  • Thread Diameter: 5/8"-18 UNF
  • Push Rod Diameter: 5/8"
  • Push Rod Length: 10"
  • Service Chamber Size: 24/30
  • Stroke Type: Standard
  • Stroke Length: 2 1/4"
  • Stud Distance: 4 3/4"
  • Notes: Serviceable

Cross-references

  • Bendix: K026561, 800830
  • Euclid: E-GC2430
  • Fleetpride: FLTC2430SB20
  • Flagg: 2430GC
  • Haldex: GC2430
  • International-Navistar: 1607380C91, 1607379C91
  • Mack: 19QE453RP3
  • PAI: EM24300-100

Manufacture Standards:

Manufactured under ISO/TS 16949:2009 our brake components meet and exceed international standards.

Our air brake components have been passed the following tests:

  • Salt spray test
  • Leak tightness
  • Endurance test
